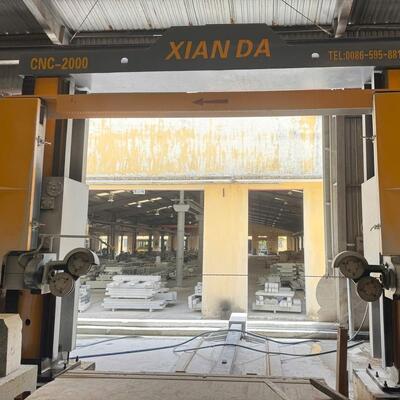

Xianda CNC Diamond Wire Saw Machine
Professional CNC diamond wire saw machine with engine motor gear, CE certified 380V/50Hz 11KW 6000kg capacity for precision stone cutting applications.
Product Overview
Technical Specifications
| Power | 11KW |
| Max Cutting Thickness | Custom |
| Place of Origin | Fujian, China |
| Weight | 6000kg |
| Warranty | 1 Year |
| Core Components | Pressure Vessel, Motor, Gear, Engine, Pump, Gearbox, Bearing |
| Primary Use | Granite |
| Voltage | 380V/50Hz |
| Brand Name | Xianda |
| Dimensions (L*W*H) | 8800mm * 6300mm * 3800mm |
| Key Selling Points | High-Accuracy |
| Max Processing Size | 3000 * 3000 * 1500mm |
| Management Certification | ISO9001 CE |
Model Comparison
| Parameter |
Unit |
CNC-2000 |
CNC-2500 |
CNC-3000 |
| Max Processing Size |
mm |
2000*3000*1500 |
2500*3000*1500 |
3000*3000*1500 |
| Wheel Diameter |
mm |
1600 |
1600 |
1600 |
| Trolley Size |
mm |
1300*2500 |
1300*2500 |
1300*2500 |
| Table Bearing Weight |
T |
15 |
15 |
15 |
| Main Motor |
kw |
11 |
11 |
11 |
| Wire Speed |
m/s |
20-40 |
20-40 |
20-40 |
| Outline Dimension |
mm |
6800*6300*3800 |
7800*6300*3800 |
8800*6300*3800 |
| Gross Weight |
kg |
≈5500 |
≈5750 |
≈6000 |
| Water Consumption |
m³/h |
≈3 |
≈3 |
≈3 |
Quality Assurance
Machinery Test Report: Provided
Video Outgoing Inspection: Provided
After-sales Service: Engineers available to service machinery overseas
