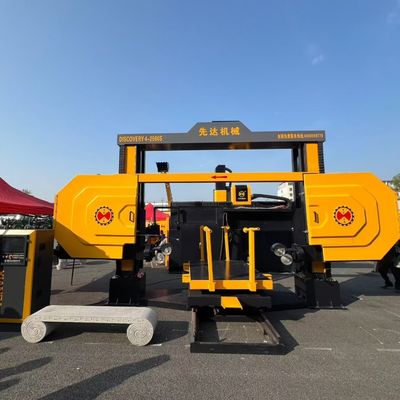

Discovery 4-2500SA / 3000SA is the "Plus" flagship of CNC diamond wire saws. A four-axis, fully digital center with a 360° servo-rotary table, 16-surface slideways, and 28 rolling-wheel synchronous lifts that sculpts arcs, columns, letters, Chinese characters, and tombstones up to 3 m × 3 m × 1.5 m in a single program, delivering mirror-quality surfaces.
| Feature | Benefit |
|---|---|

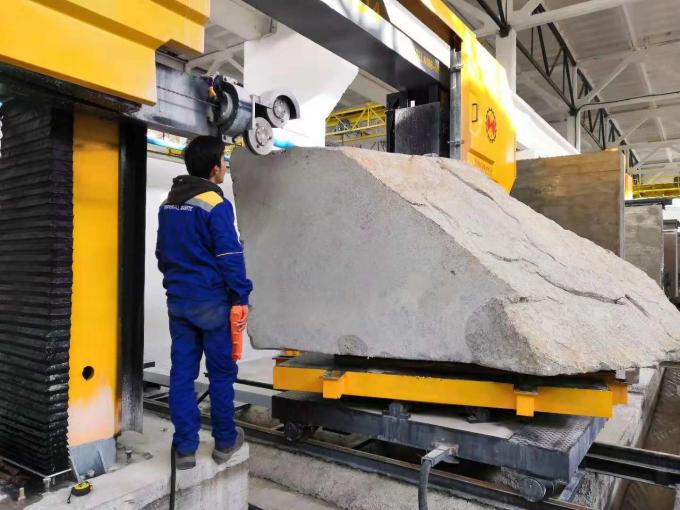

| 360° servo-rotary table | Cuts 360° cylinders, 4-side dressing, 3-D reliefs without repositioning |
| 16-surface slideway + 28 rollers | Zero backlash, 20 t load, vibration-free wire guidance |
| S-type waterproof gearbox | Sealed against sludge, 3× longer gearbox life |
| 15 kW permanent-magnet motor | Constant torque 20-40 m/s, 15% energy saving |
| Plus frame reinforcement | Absorbs 20 t loads |
| Model | Max Block | Table Size | Footprint | Weight | Wire Wheel |
|---|---|---|---|---|---|
| Discovery 4-2500SA | 2.5 × 3 × 1.5 m | 1.4 × 2 m | 7.8 × 6.8 × 4.25 m | 8.25 t | Ø1600 mm |
| Discovery 4-3000SA | 3 × 3 × 1.5 m | 1.6 × 2 m | 8.8 × 6.8 × 4.25 m | 8.75 t | same |
Same 20-40 m/s wire speed, 15 kW PM motor, and 3 m³/h water system for both models.
Result: true 3-D sculpture, 360° column, four-sided squaring, or curved façade panel without repositioning.
Materials: granite, marble, quartzite, basalt, engineered stone.
| Item | Detail |
|---|---|
| MOQ | 1 (one) machine |
| Shipping | Sea freight to nearest port included |
| Incoterms | FOB, CIF, DDP optional |
| Lead time | 35 days stock / 45 days custom |
| Payment | T/T 30% deposit, 70% before shipment; L/C at sight accepted |
